Source directory /data/lofarschool/data/Exercise-PSR-02
Contact person Jason Hessels

This exercise simultaneously illustrates two fundamental steps in pulsar data reduction: dedispersion and folding.


Little prerequisite knowledge required, except perhaps knowing what a pulsar is, which you should know already! :-)

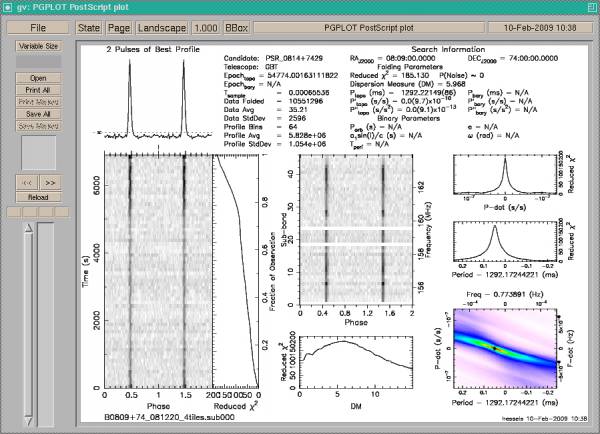

In this exercise, the user takes a number of subbands and both folds and dedisperses these with respect to each other in order to bring a pulsar signal out of the noise. This is done in a number of steps, which illustrate how one can optimize the detected signal, starting from a rough estimate of the spin ephemeris. This exercise uses the PRESTO routine “prepfold”, which produces a detailed diagnostic plot with signal properties. Such plots are the cornerstone of pulsar searches, in which one must separate potential astronomical signals for a background of RFI signals, some of which are particularly good at masquerading as pulsars. There are _many_ options one can use with prepfold, so feel free to try these out!


The “raw” data is a set of LOFAR subbands:


with corresponding meta-data:


Using a python script, these subbands were extracted to PRESTO format from a beam-formed HDF5 file, which in turn was created with the DAL routine “bf2h5”. When running bf2h5 on the truly raw, station data, the time resolution is downsampled by a factor of 128.


B0809+74.par: This ascii file contains the rotational ephemeris of the pulsar, necessary for predicting the required folding period at the observation epoch.

COMMANDS.txt: The commands that the user should run (in order).

PULSAR_ENV: Required environment variables for running PRESTO (bash shell assumed).

  1. Fold the data using a parameter file:
    prepfold -timing B0809+74.par B0809+74_081220_4tiles.sub[0-9]*
  2. Re-fold the data, dropping the first 2% of the dataset:
    prepfold -start 0.02 -timing B0809+74.par B0809+74_081220_4tiles.sub[0-9]*
  3. Re-fold the data again, allowing the program to optimize the pulse period:
    prepfold -o BEST_FOLD -start 0.02 -topo -par B0809+74.par -fine B0809+74_081220_4tiles.sub[0-9]*
  4. Play with prepfold to produce different plots (run simply “prepfold” to get a list of command line options).
