Source directory /data/lofarschool/data/Exercise-PSR-03
Contact person Jason Hessels

Illustrates an important technique for characterizing RFI, finding binary pulsars, as well as other science like planets and flare stars.


Exercises PSR-01 and PSR-02 and knowledge of what a dynamic spectrum shows.

In this exercise, the user will create a dynamic spectrum from timeseries data and interactively inspect it for a pulsar signal and RFI. This is one way in which binary pulsars (who’s signal is Doppler shifted) can be detected, but it also gives a way to characterise other pseudo-periodic interfering sources. Also important technique for other science like planets and flare stars.


B0809+74_081220_4tiles_DM6.12.dat: LOFAR timeseries (all observed subbands dedispersed and added)

B0809+74_081220_4tiles_DM6.12.fft: a power spectrum of the timeseries

B0809+74_081220_4tiles_DM6.12.inf: required header info

Ter5_03Oct04_DM238.00_350s.pick: a dynamic spectrum of data from the globular cluster Ter5. There are at least a dozen pulsars to see in these data (look at the for a list of their spin frequencies).

Ter5_03Oct04_DM238.00_350s.inf: required header info

SCRIPT: the python script that creates a dynamic spectrum. Feel free to tweak this if you know some python.

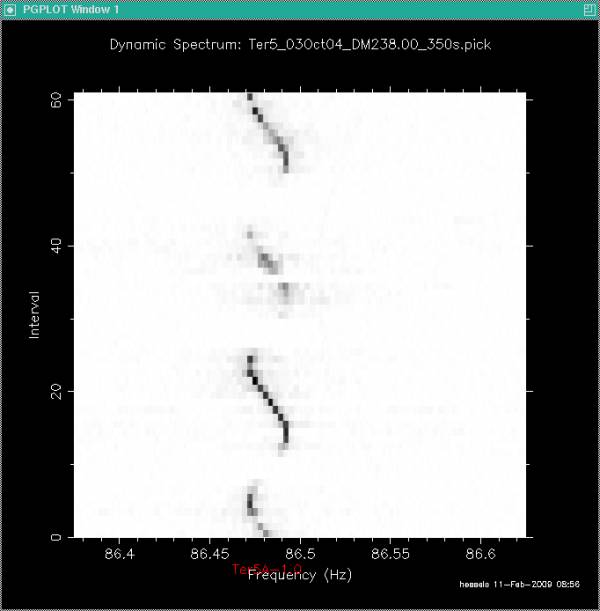

SAMPLE OUTPUT: a dynamic spectrum showing the binary motion of the 2-hr eclipsing pulsar Ter5A.


COMMANDS.txt: some sample commands that the user can run

PULSAR_ENV: necessary environment variables (bash shell assumed)

  1. To create a dynamic spectrum with a given central frequency and sub-int length:
    python 3.0 310 0 B0809+74_081220_4tiles_DM6.12.dat
  2. To move left or right in this dyn. spectrum: type “,” or “.”
  3. To print the current window: type “p”
  4. To view the eclipsing 2-hr binary pulsar Ter5A (data from GBT):
    python 86.5 350 1 Ter5_03Oct04_DM238.00_350s.pick
